Haltech Nexus S3 Plug 'n' Play Adapter Harness Kit - Nissan Silvia S14 S1 ZENKI

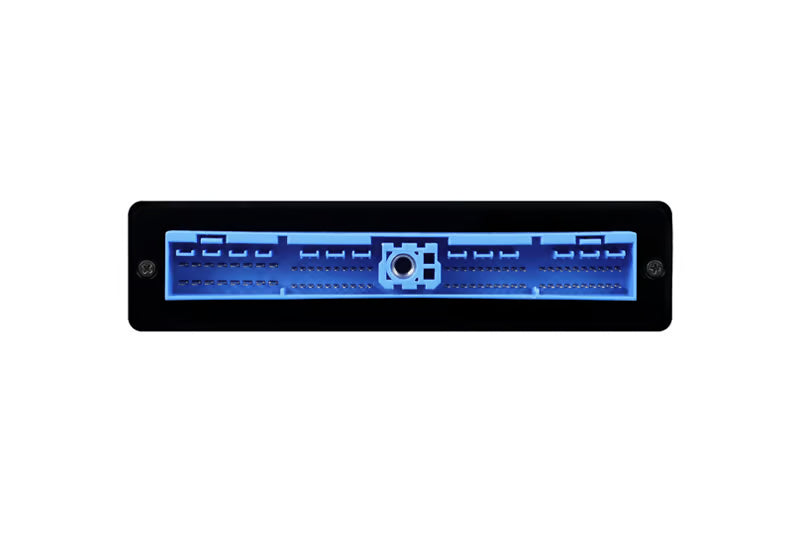

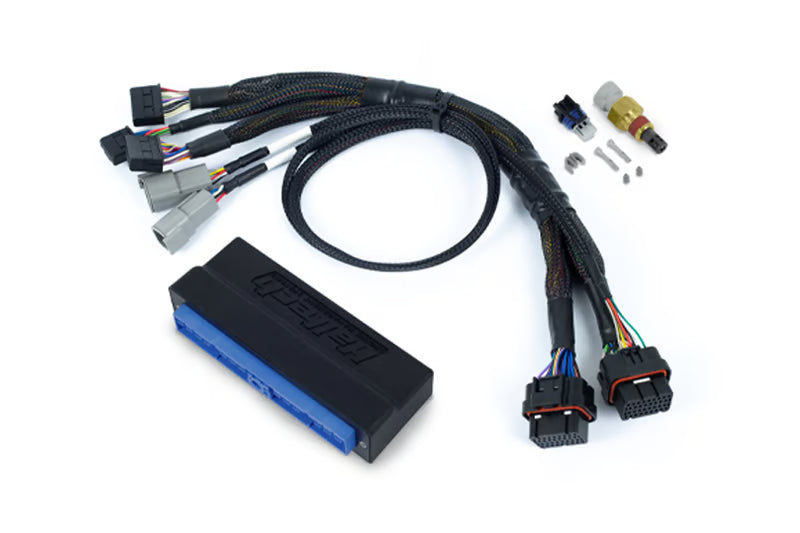

If you are using a factory harness and are after an easy ECU upgrade, take a look at Haltech Plug 'n' Play Adapter Kits. These adapters plug directly into your Haltech ECU and have a set of factory connectors on the other side which plug straight into the factory harness.

A simple Haltech Plug 'n' Play product that allows you to be up and running in just a few hours.

The quick start guide will walk you through installation of the Haltech Plug 'n' Play adapter into your vehicle.

ECU OVERVIEW

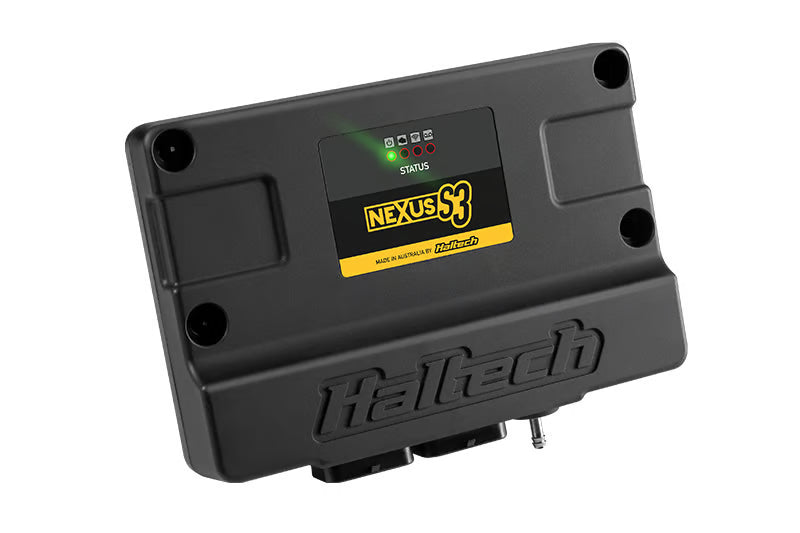

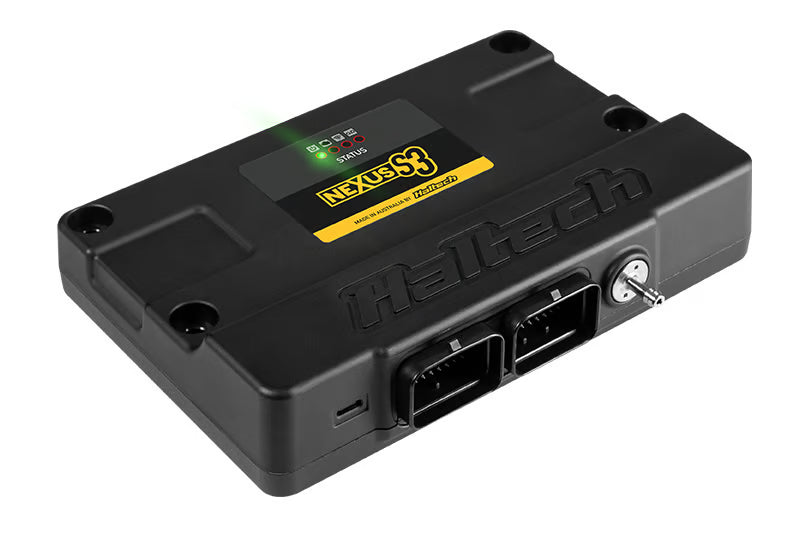

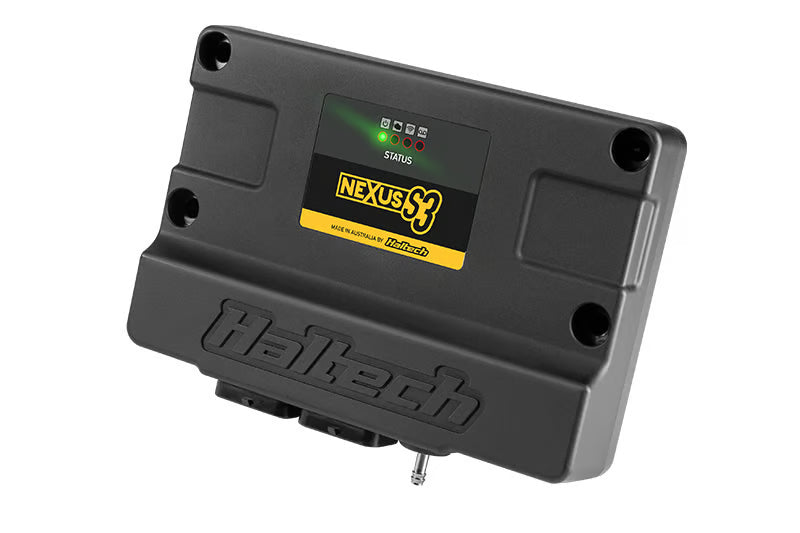

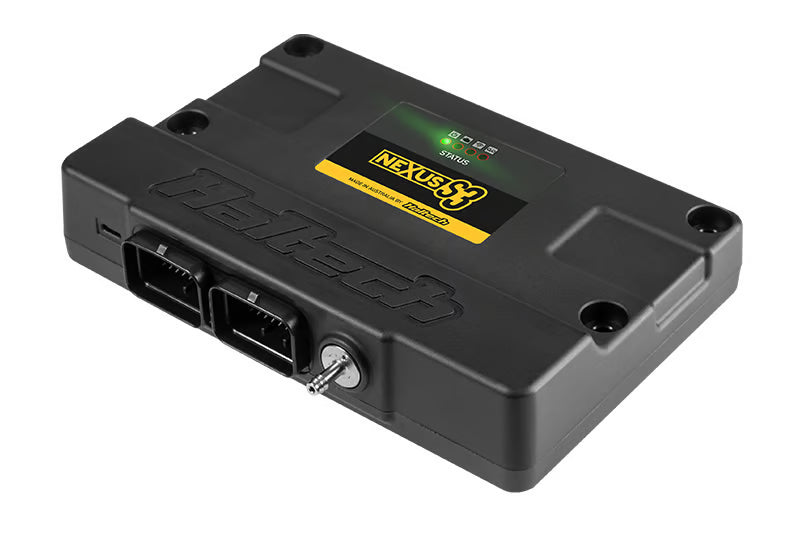

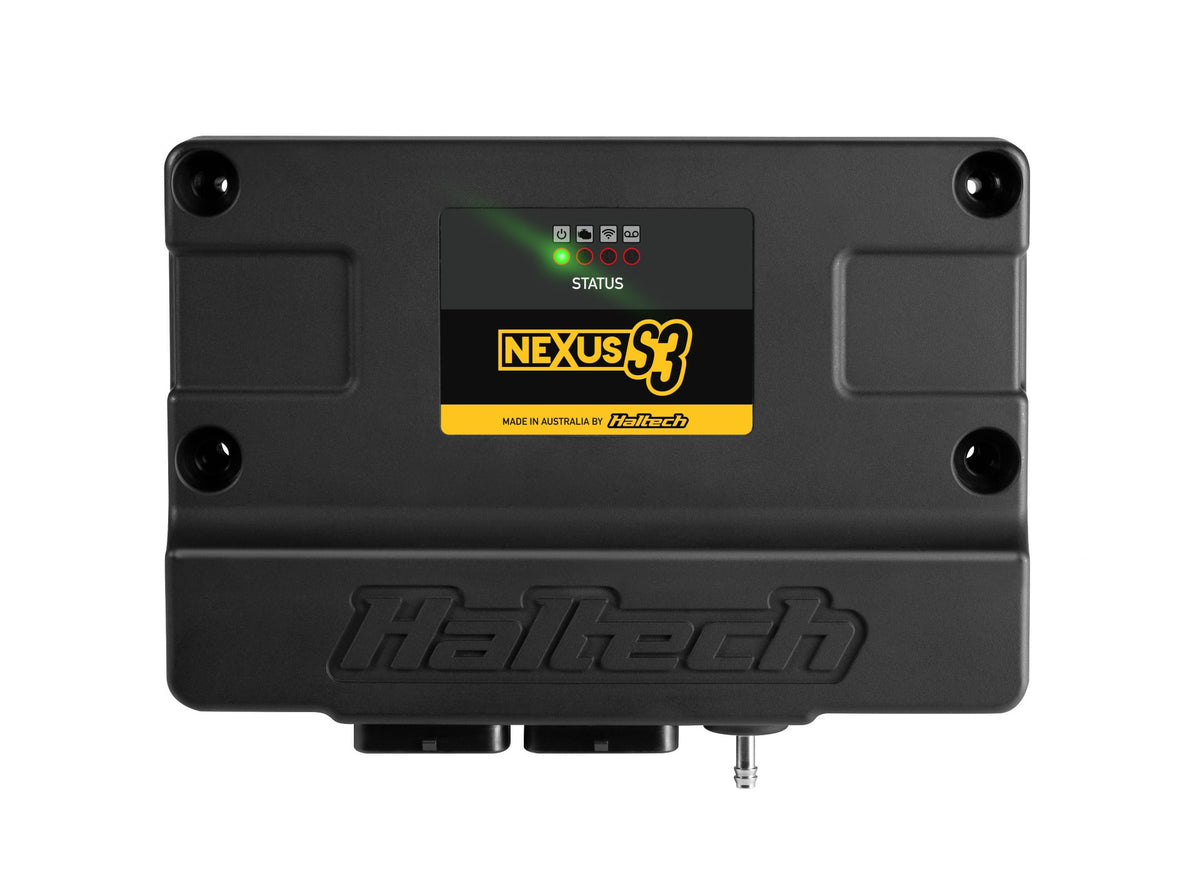

Haltech's Nexus S3 is the successor to the acclaimed Elite 2500, offering a serious upgrade in performance and functionality. The S3 combines all the classic functionality of the Elite 2500 with new features and the superior processing power of the successful Nexus platform.

8 x peak/hold injector drivers (can be used as low side drive outputs)
8 x low current Ignition outputs (can be used as low side drive outputs)
6 x low side drive outputs, PWM capable (DPOs)
4 x push-pull / half bridge outputs (8A, PWM capable), eg for electronic throttle
1 x ECR output
11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
1 x on-board wideband controller, supporting NTK and LSU4.9
1 x on-board 4 bar MAP sensor
2 x CAN ports with switchable termination
Onboard data logging - Up to 300 channels of logging at sample rates up to 1ms (1kHz) with 128MB of internal memory

Suits: Plug 'n' Play replacement of the factory ECU for Nissan Silvia S14 S1 "ZENKI" Manual transmission only.

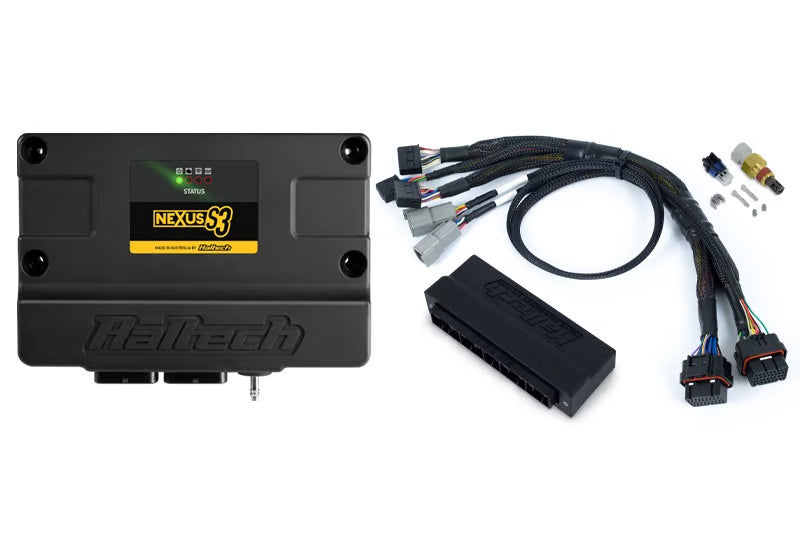

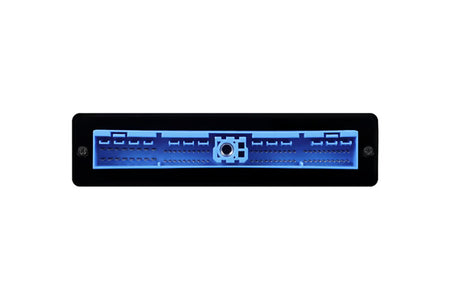

Includes: Nexus S3 ECU, Injection molded plastic plug 'n' play adaptor harness, M14 x 1.5 air Temperature Sensor with matching plug and pins, auxiliary I/O 16 Pin Tyco plug and pins.

Notes: Manual transmission only.
